OEM-Reman Sullair 1600H-AF

OEM-Reman Sullair 1600H-AF

$306,625.00
$306,625.00 $542,000.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want it shipped quickly? Check out now!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Up to 43% off

Product Info

  • Complete remanufactured portable compressor package.
  • New galvanneal sheet metal, instrumentation, piping and electrical system. Powered by a CAT Certified Reman C15 with a full warranty of 2 years or 3,000 hours administrated by Caterpillar. CAT Extended Service Coverage (ESC) is eligible.
  • Both the CAT C15 and the Sullair package are built to the most current revision and engineering standard.
  • Whole good production unit features a current year serial number, new factory warranty. External fuel supply and return lines are standard. If you are interested in exchanging your core call / message us!
  • Delivery is usually in 3-4 weeks.

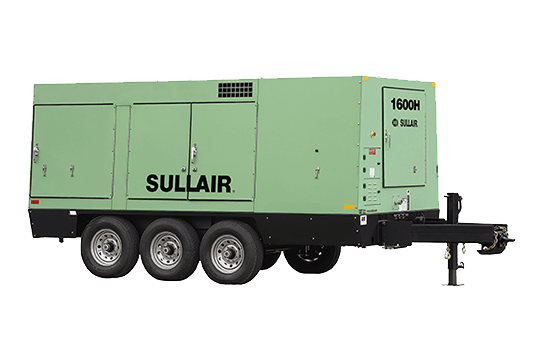

  • Note: 1600H pictured.  We are selling a 1600H-AF.  Sullair just doesn't send us marketing pictures.  Sorry!

Details

  • Model: Reman 1600H-AF  Manufactured by Sullair.  This is a reman unit because the air end is remanufactured.  Otherwise anyone would call it a brand new unit.
  • Actual Delivery 1600 cfm
  • Rated Pressure 150 PSI (85/150 - min/max)
  • Dimensions ~240" L x 88" W x 93" H.
  • This unit weighs 15,020 lbs dry and 16,350 working weight.
  • Engine is a Cat C15 (T3).  That is a diesel that drinks 26.3 gallons of fuel per hour.  The rated power is 540BHP.
  • Engine oil capacity is 36 qts.  Cooling system capacity is 32 gallons.  Compressor oil capacity is 45 gallons
  • The fuel tank is 190 gallons.
  • Max tow speed is 55 MPH
  • Unit has 2 service vales, both 3".

Warranty:

  • Standard Package: 1 Year
  • Engine: 2 years/3,000 hours (whichever occurs first)
  • Standard Air End: 2 Years
  • Extended Air End: 5 Years / 10,000 Hours (whichever occurs first)
  • Standard AirEnd: Except shaft seal, inlet valve, piping, tubing, spiral valve actuator, oil pump & discharge check valve.
  • Extended AirEnd: Except shaft seal, inlet valve, piping, tubing, spiral valve actuator, oil pump & discharge valve.
  • Conditional on the use of Sullair fluids (AWF), filters and other OEM aftermarket parts, and maintaining the machine in accordance with Sullair’s recommended intervals & requirements.
    ***A semi-annual fluid sample submission to Sullair is required
  • Warranty is administrated by Sullair, LLC
  • Warranty to be registered by the buyer by emailing warranty@sullair.com
